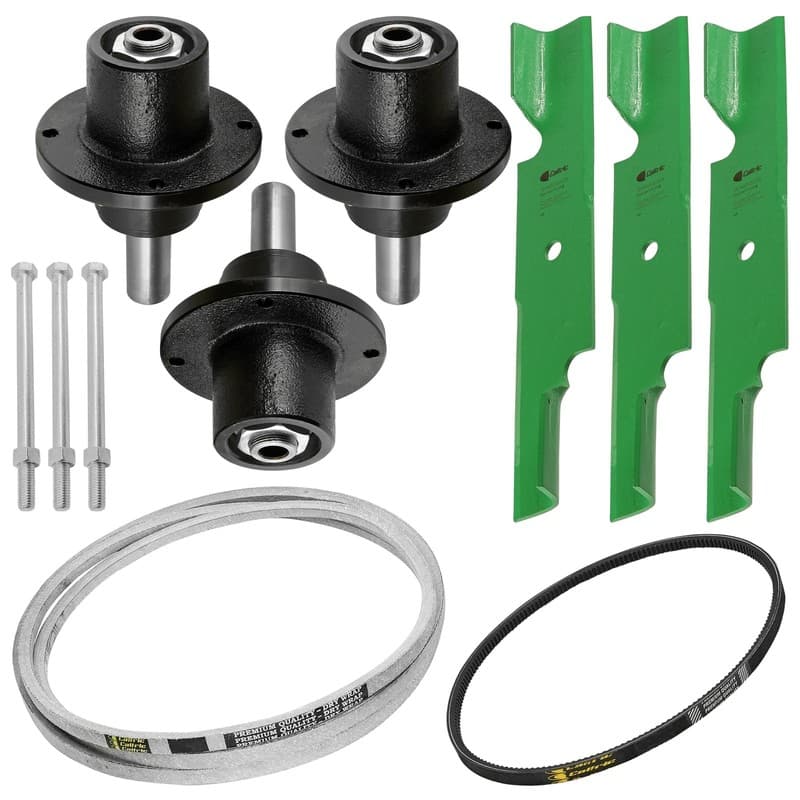

48V" Deck Spindle Kit For Scag STC48V-651FS / STWC48V-25CV / STWC48V-26KA-LC

Mower Deck Spindle with Blade / Bolt and Belt Kit

Compatible with Scag Models:

SCZ48V-22FX (Cheetah) (S/N J9600001-J9699999) 48V"

SCZ48V-22FX (Cheetah) (S/N L6100001-L6199999) 48V"

SCZ48V-23CV (Cheetah) (S/N J9700001-J9799999) 48V"

SCZ48V-23CV-EFI (Cheetah) (S/N L6200001-L6299999) 48V"

SCZ48V-25CV (Cheetah) (S/N H6800001-H6899999) 48V"

SCZ48V-26BS (Cheetah) (S/N K4400001-K4499999) 48V"

SCZ48V-28BS (Cheetah) (S/N H6900001-H6999999) 48V"

SCZ48V-691FX (Cheetah) (S/N H6700001-H6799999) 48V"

SMTC-48V (S/N B5900001-B5999999) 48V"

SMTC-48V (S/N D9100001-D9199999) 48V"

SMTC-48V (Tiger Cub) (S/N D9100001-D9199999) 48V

SMTC-48V (Wildcat) (S/N D9100001-D9199999) (Rev. 2) 48V"

SMTC-48V Tiger Cat (S/N D9100001-D9199999) 48V"

SMTC-48V Tiger Cub (S/N B5900001-B5999999) 48V"

SMTC-48V Tiger Cub (S/N C7000001-C7099999) 48V"

STC48V-19KAI Tiger Cub (S/N C1600001-C1699999) 48V"

STC48V-21KA Tiger Cub (S/N B5100001-B5199999) 48V"

STC48V-22FS (S/N F7400001-F7499999) 48V"

STC48V-22FS (Tiger Cat) (S/N J8700001-J8799999) 48V"

STC48V-22FS-LE (S/N F7600001-F7699999)48V"

STC48V-23CV (Tiger Cat) (S/N J8800001-J8899999) 48V"

STC48V-23CV Tiger Cub (S/N C2000001-C2099999) 48V"

STC48V-25CV (S/N F3900001-F3999999) 48V"

STC48V-25CV (Tiger Cat) (S/N G2700001-G2799999) 48V"

STC48V-25CV (Tiger Cat) (S/N H5700001-H5799999) 48V"

STC48V-26BS (S/N F4000001-F4199999) 48V"

STC48V-26BS (Tiger Cat) (S/N G2800001-G2899999) 48V"

STC48V-26BS Tiger Cub (S/N D1300001-D1399999) 48"

STC48V-27BS (Tiger Cat) (S/N J3600001-J3699999) 48V"

STC48V-651FS (Tiger Cat) (S/N G2600001-G2699999) 48V"

STC48V-651FS (Tiger Cat) (S/N H5600001-H5699999) 48V"

STCII-48V-22FS (Tiger Cat II) (S/N L8800001-L8899999) 48V"

STCII-48V-22FX Tiger Cat II (S/N M6200001-M6299999) 48V"

STWC48V-25CV (S/N F4400001-F4499999) 48V"

STWC48V-26KA-LC (S/N F4500001-F4599999) 48V"

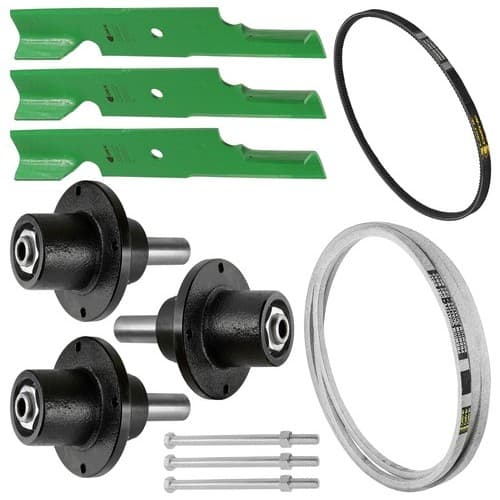

Order Includes:

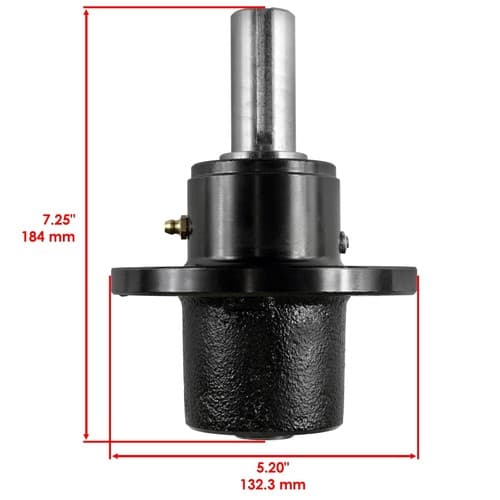

3 x Deck Spindle ։ 46631, 461663

Height: 7.25 in - 184 mm

Width: 5.20 in - 132.3 mm

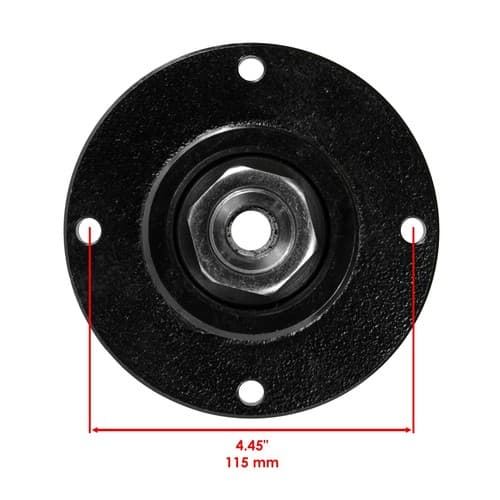

Mounting Hole Distance: 4.45 in - 115 mm

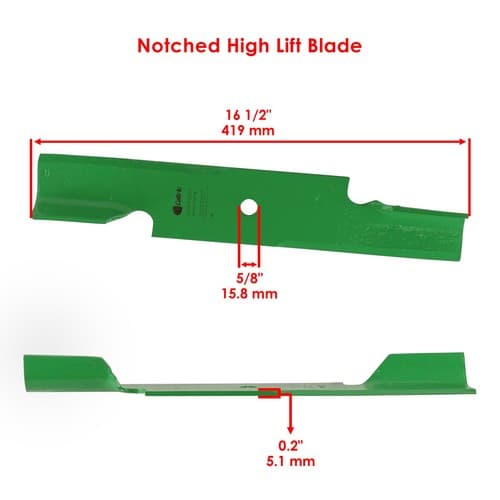

3 x Notched High Lift Blade (16.5") ։ 482877

Length: 16 1/2 in - 419 mm

Thickness: 0.2 in - 5.1 mm

Center Hole Diameter: 5/8 in - 15.8 mm

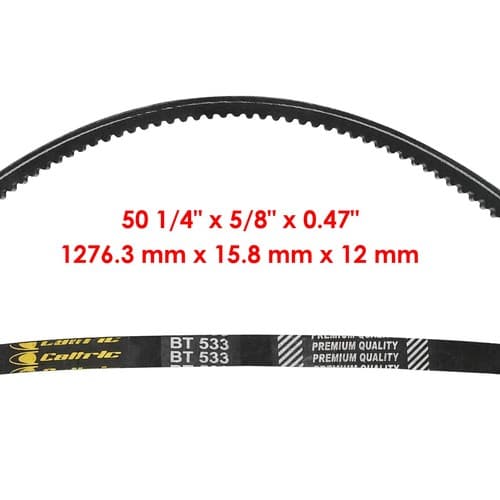

1 x Deck RH Belt ։ 483239

50 1/4 x 5/8 x 0.47 inch

1276.3 x 15.8 x 12 mm

1 x Deck Belt ։ 483241

Overall Lenght : 117 1/4 in - 2978 mm

Width : 5/8 in - 15.8 mm

Thickness : 0.46 in - 11.7 mm

3 x Blade Bolt and Nut :  04001-41, 04001-158

Length: 9.87 in - 250.82 mm

5/8 -11
