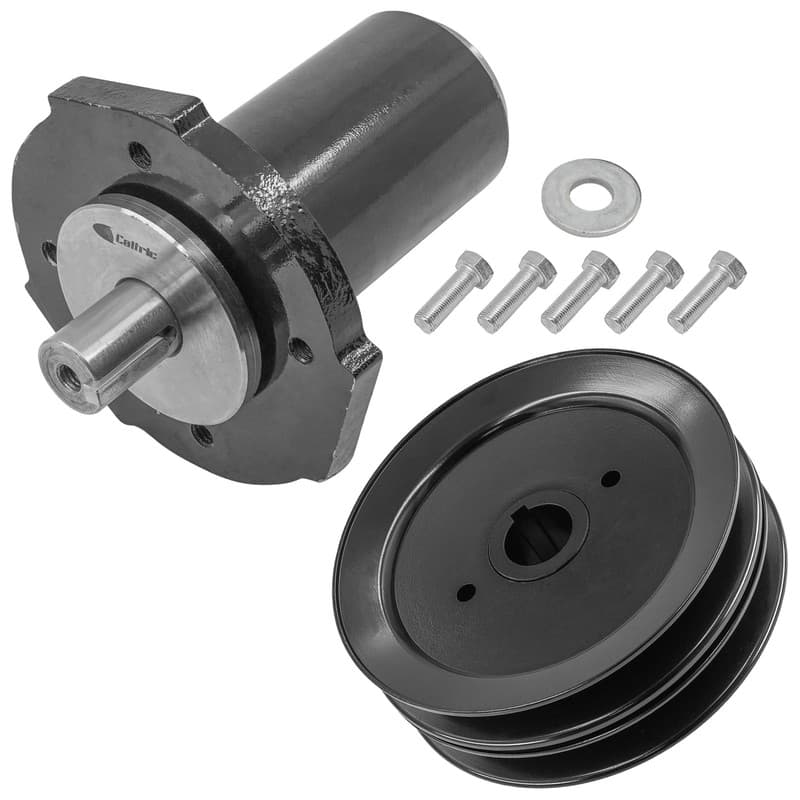

52" Deck Spindle with Double Pulley For Gravely ZT52 HD ZT60 HD / Pro-Turn 148

 Premium Quality Replacement Part

Deck Spindle Double Pulley

Compatible with Ariens Models:

Apex 48" Zero-Turn Mower

991153 Koh. (Sn: 000101 & Above)

991161 23hp Koh. (Sn: 040000 & Above)

991173 Koh. (Sn: 000101 & Above)

991296 Kw. (Sn: 100000 & Above)

991311 (000101 - 099999), 991311 (A0371200 - )

991316 (A0371200 - ), 991317 (A0389800 - ), 991324 (A0401098 - )

991324 23hp Kw. (Sn: 000101 & Above)

991325 (A0401098 - )

991325 23hp Kw. (Sn: 000101 & Above)

Max-Zoom HD 52" Zero-Turn Mower

991074 24hp Kw. (Sn: 000101 & Above)

Max-Zoom 52" Zero-Turn Mower

991065 (2552) 25hp Koh. (Sn: 000101 & Above)

991086 24hp Kw. (Sn: 000101 & Above)

Zoom 52" Zero-Turn Mower

991039 (2452 Hd) 24hp B&S

Pro-Master 52" Zero-Turn Mower

992322 (Pm 252 H) 27hp Daih. Diesel (Sn: 003000 & Above)

992322 (Pm 252 Z) 27hp Daih. Diesel (Sn: 002500 - 002999)

Compatible with Gravely Models:

Pro-Turn 152 52" Zero-Turn Mower

991080 Kw. (Sn: 000101 & Above)

991129 Kw. Fx (Sn: 092000 & Above)

991132 Koh. Zt (Sn: 092000 & Above)

991135 Koh. Ezt Efi (Sn: 092000 & Above)

ZT HD 44 44" Zero-Turn Mower

991266 Kw. Fr (Sn: 000101 & Above)

991267 Kw. Fr (Sn: 000101 - 009999)

991267 Kw. Fr (Sn: 020000 & Above)

ZT HD 48 48" Zero-Turn Mower

991268 Kw. Fr (Sn: 000101 & Above)

991269 Kw. Fr (Sn: 000101 - 009999)

991269 Kw. Fr (Sn: 020000 & Above)

991274 Koh. 7000 Pro (Sn: 000101 & Above)

Pro-Turn Z 48 48" Zero-Turn Mower

991280 764 Pro (Sn: 000101 & Above)

991281 Kw. Fs (Sn: 000101 & Above)

Pro-Turn ZX 48 48" Zero-Turn Mower

991286 Kw. Fx (Sn: 000101 & Above)

991287 Kw. Fx (Sn: 095000 & Above)

Pro-Turn 252 52" Zero-Turn Mower

992268 Kw. Fx (Sn: 092000 & Above)

Pro-Turn 652 52" Zero-Turn Mower

992500 Kw. Fx (Sn: 000101 & Above)

Pro-Turn 552 52" Zero-Turn Mower

992510, 992513 (Sn: 000101 - )

Pro-Turn 352 52" Zero-Turn Mower

890100 52" Deck (Sn: 000101 & Above)

890101 52" Deck (Sn: 000101 & Above)

991069 Kw. (Sn: 000101 & Above)

991070 Kw. (Sn: 000101 & Above)

991083 Kw. (Sn: 000101 & Above)

991084 Kw. (Sn: 000101 - 034999)

992521 (Sn: 000101 - )

Rapid Xz 52" Deck (Side Discharge)

Zt 52 Hd 52" Zero-Turn Mower

Zt 60 Hd 52" Zero-Turn Mower

52" Zero-Turn Mower

991037 (Zt 2552 Hd) 25hp Koh. Courage (Sn: 000200 & Above)

991054 (Zt 2552 Hd) 25hp Koh. (Sn: 000101 & Above)

Pro-Master 52" Zero-Turn Mower

991011 (Pm 152 Xdz) 23hp Kw. (Sn: 000101 & Above)

991017 (Pm 152m) 23hp Kw. (Sn: 000101 & Above)

991018 (Pm 152m) 25hp Koh. (Sn: 000101 & Above)

991024 (Pm 152m) 23hp Koh. (Sn: 000101 & Above)

991028 (Pm 152m Xdz) 23hp Kw. (Sn: 000101 & Above)

991030 (Pm 152m) 21hp Kw. (Sn: 000101 & Above)

991031 (Pm 152m Xdz) 23hp Koh. (Sn: 000101 & Above)

Order Includes:

1x Deck Center Spindle: Gravely: 59125000, 58810800, 59202600, 59225700,

59215400, 69219700, 69221300, 59114000, 59201000, 59215500,

59225800, 09239400, 59109800,

Ariens: 59125000, 58810800, 59202600, 59225700, 59215400,

69219700, 69221300, 59114000, 59201000, 59215500,

59225800, 09239400, 59109800

Length: 188.3 mm - 7.41 in

Outer Diameter: 132.3 mm - 5.21 in

Inner Diameter: 8 mm - 0.31 in

Mounting Hole Distance: 72.6 mm - 2.86 in

1x Deck Spindle Double Pulley: Ariens: 07332300, 07332367,

073000200, 07300020,

Gravely: 07332300, 07332367, 073000200, 07300020

Inner Diameter: 25 mm - 0.98 in

Outer Diameter: 152 mm - 5.98 in

Width: 51 mm - 2.0 in

Height: 14 mm - 0.55 in
