Specifications
- MPN
- 07332300, 07332367, 073000200, 58810800, 59202600, 59225700, 59215400, 59109800, 69221300, 59125000, 69219700, 59114000, 59201000, 59215500, 59225800, 09239400, 59109800, 07300020, 07332167, 59211700, 07332100
- Mpn
- 07332300, 07332367, 073000200, 58810800, 59202600, 59225700, 59215400, 59109800, 69221300, 59125000, 69219700, 59114000, 59201000, 59215500, 59225800, 09239400, 59109800, 07300020, 07332167, 59211700, 07332100
- UPC
- Does not apply
- Type
- Spindle
- Brand
- Caltric
- Color
- Black
- Model
- For Ariens: 58810800, 07332167, 59211700, 07332300, 07332367
- Gtin13
- Does not apply
- Voltage
- 12 V
- Material
- Steel, Cast Iron
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
Description
Premium Quality Replacement Part
Deck Spindle with Pulleys
Compatible with Ariens Models:
Apex 48" Zero-Turn Mower
991153 Koh. (Sn: 000101 - 014999)
991173 Koh. (Sn: 000101 - 014999)
991311 (000101 - 014999)
Max-Zoom HD 52" Zero-Turn Mower
991074 24hp Kw. (Sn: 000101 & Above)
991075 24hp Kw. (Sn: 000101 & Above)
Max-Zoom 52" Zero-Turn Mower
991065 (2552) 25hp Koh. (Sn: 000101 & Above)
991086 24hp Kw. (Sn: 000101 & Above)
991087 24hp Kw. (Sn: 000101 - 044999)
Zoom 52" Zero-Turn Mower
991039 (2452 Hd) 24hp B&S (Sn: 000200 & Above)
Pro-Master 52" Zero-Turn Mower
992322 (Pm 252 H) 27hp Daih. Diesel (Sn: 003000 & Above)
992322 (Pm 252 Z) 27hp Daih. Diesel (Sn: 002500 - 002999)
Compatible with Gravely Models:
52" Rapid XZ Side Discharge Mower
890100 (Sn: 000101 & Above)
890101 (Sn: 000101 & Above)
52" Zero-Turn Mower
991069 (Zt 52 Hd) Kw. (Sn: 000101 & Above)
991080 (Pro-Turn 152) Pro-Turn 52" Kw. (Sn: 000101 - 020999)
991083 (Zt 52 Hd) Kw. (Sn: 000101 & Above)
Pro-Master 52" Zero-Turn Mower
991011 (Pm 152 Xdz) 23hp Kw. (Sn: 000101 & Above)
991017 (Pm 152m) 23hp Kw. (Sn: 000101 & Above)
991018 (Pm 152m) 25hp Koh. (Sn: 000101 & Above)
991024 (Pm 152m) 23hp Koh. (Sn: 000101 & Above)
991028 (Pm 152m Xdz) 23hp Kw. (Sn: 000101 & Above)
991030 (Pm 152m) 21hp Kw. (Sn: 000101 & Above)
991031 (Pm 152m Xdz) 23hp Koh. (Sn: 000101 & Above)
991037 (Zt 2552 Hd) 25hp Koh. Courage (Sn: 000200 & Above)
991054 (Zt 2552 Hd) 25hp Koh. (Sn: 000101 & Above)

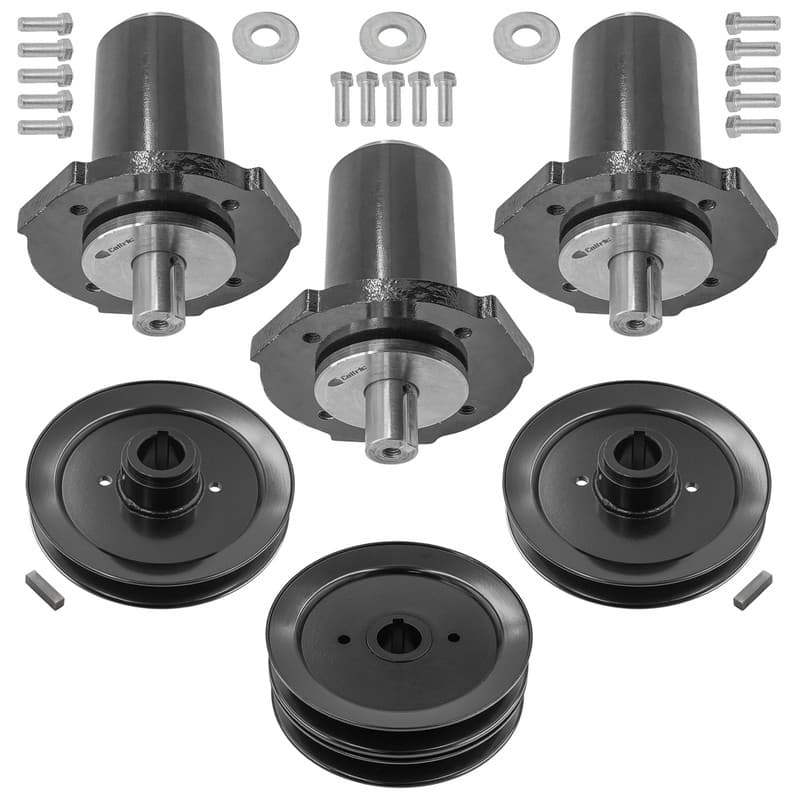

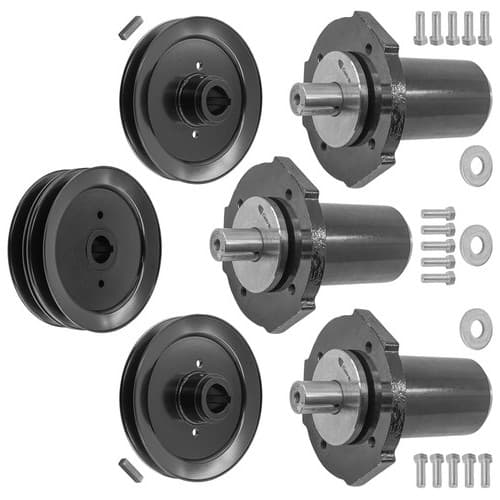

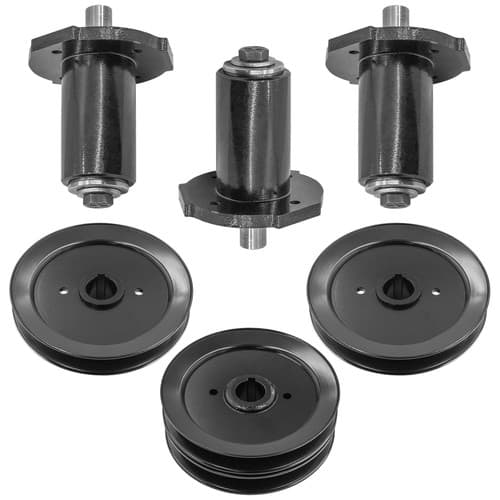

Order Includes:
3x Deck Center Spindle: Gravely: 59125000, 58810800, 59202600,
59225700, 59215400, 69219700, 69221300, 59114000,
59201000, 59215500, 59225800, 09239400, 59109800,
Ariens: 59125000, 58810800, 59202600, 59225700,
59215400, 69219700, 69221300, 59114000, 59201000,
59215500, 59225800, 09239400, 59109800

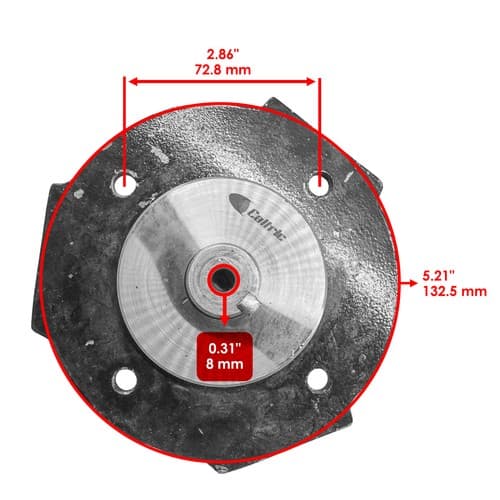

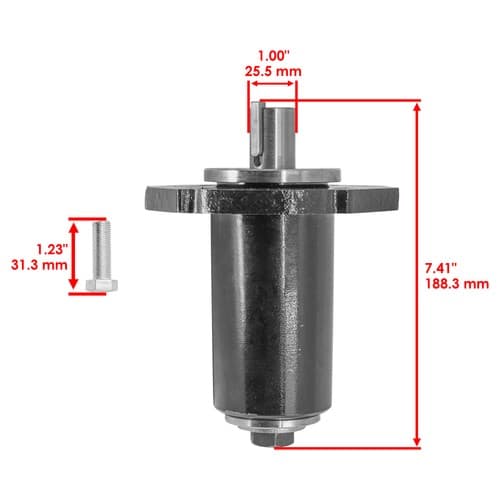

Length: 188.3 mm - 7.41 in,
Outer Diameter: 132.3 mm - 5.21 in,
Inner Diameter: 8 mm - 0.31 in,
Mounting Hole Distance: 72.6 mm - 2.86 in
2x Deck Pulley: Ariens: 59211700, 07300019, 07332167, 07332100,
Gravely: 59211700, 07300019, 07332167, 07332100
Inner Diameter: 25.4 mm - 1 in,
Outer Diameter: 152 mm - 5.98 in,
Width: 47 mm - 1.85 in,
Height: 17.5 mm - 0.68 in

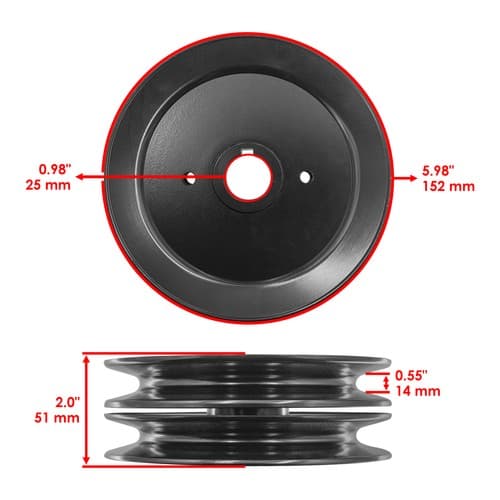

1x Pulley: Ariens: 07332300, 07332367, 073000200, 07300020,
Gravely: 07332300, 07332367, 073000200, 07300020
Inner Diameter: 25 mm - 0.98 in,
Outer Diameter: 152 mm - 5.98 in,
Width: 51 mm - 2.0 in,
Height: 14 mm - 0.55 in
