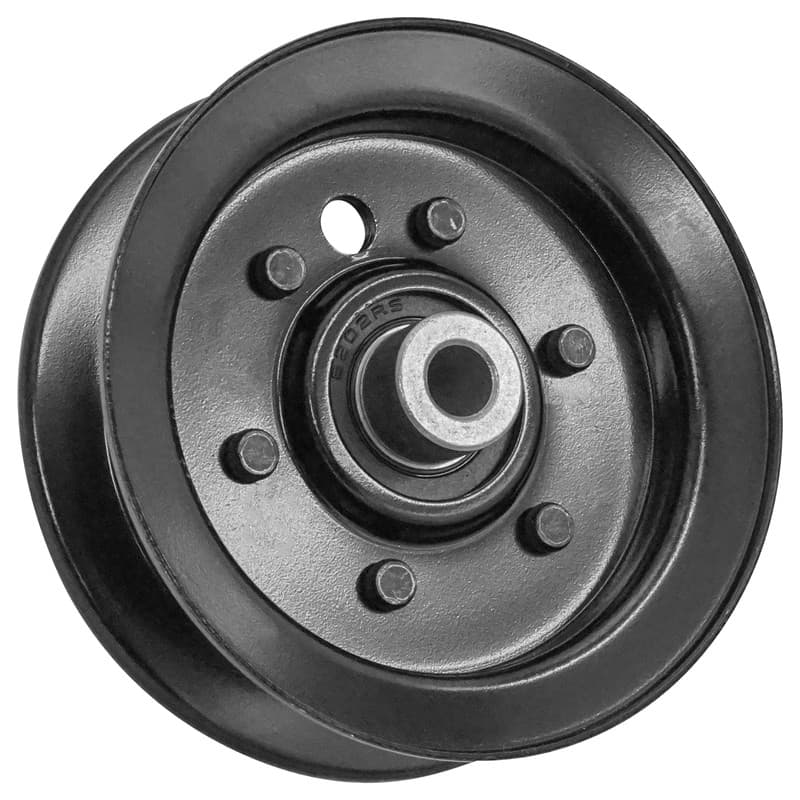

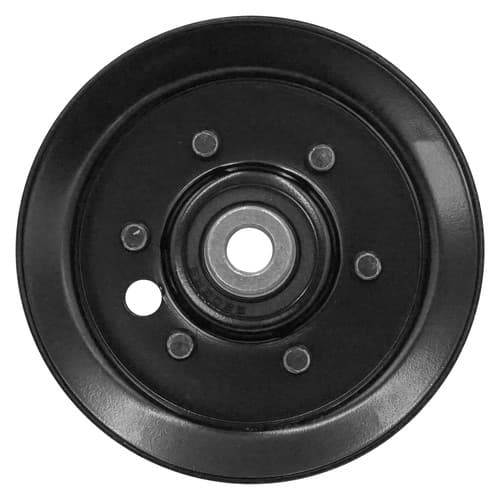

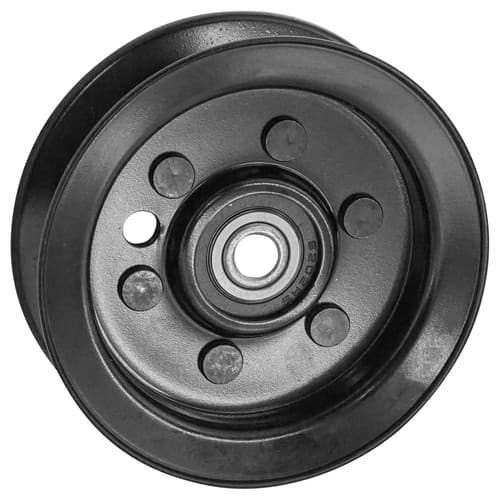

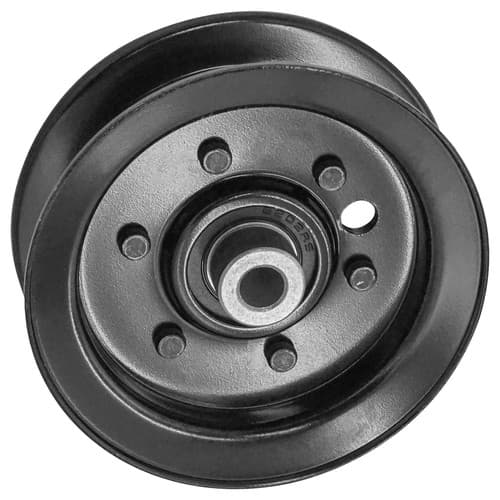

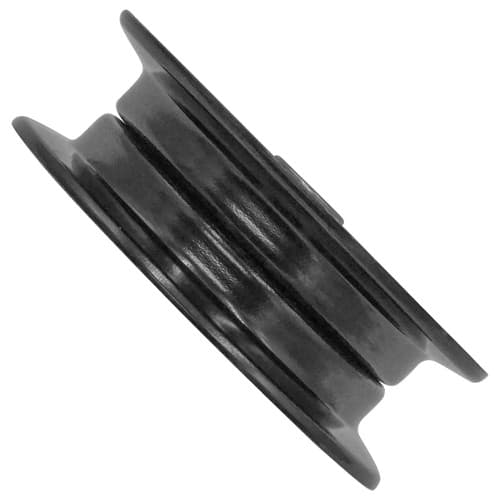

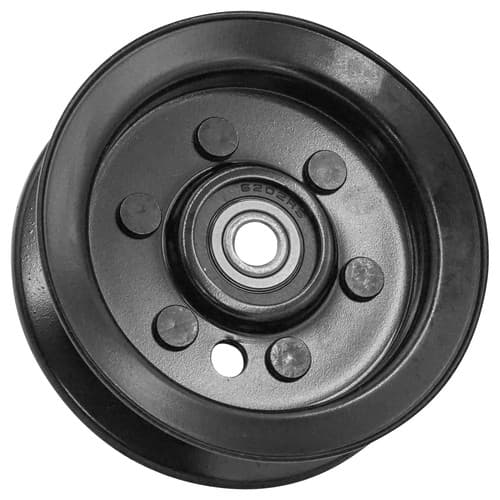

7075707YP 27717 Deck Flat Idler Pulley For Snapper ESZT18336 HZ14330 HZS15420

 Premium Quality Replacement Part

Drive Flat Idler Pulley

Compatible with Snapper Models:

Lawn Tractor

7061288 33" ELT

7061415 30" ELT

BH 140H33BBV (80878) Black Hawk 33" 14hp

ELT 120G30AB (80394) 30" 12hp

ELT 120G33AB (80476) 33" 12hp

ELT 125G33AB (80476) 33" 12.5hp

ELT 125G33BB (80647) 33" 12.5hp

ELT 125G33DB (82417) 33" 12.5hp

ELT 140H33BBV (80649) 33" 14hp

ELT 140H33DBV (82418) 33" 14hp

ELT 145H33FBV (84360) 38" 14.5hp

ELT 145H33GBV (84597) 33" 14.5hp

ELT 145H33HBV (84726) 33" 14.5hp

ELT 150H33IBV (84901) 33" 15hp

ELT 180H33IBV (85689) 33" 18hp

Zero-Turn Mower

ESZT 18336 BVE (85697) 33" 18hp

Yard Cruiser

EYZ 15334 BVE (84893) 33" 15hp

HZ 14330 BVE (82366) 33" 14hp

HZ 14380 BVE (82367) 38" 14hp

HZ 15420 KVE (82370) 42" 15hp

HZS 14330 BVE (82520) 33" 14hp

HZS 14331 BVE (82545) 33" 14hp

HZS 14380 BVE (82522) 38" 14hp

HZS 15420 KVE (82370) 42" 15hp

HZS 15421 KVE (82547) 42" 15hp

Compatible with White Outdoor Models:

Lawn Tractor

FST-14 (131-786G190) (1991)

(132-786G190) (1992), (133R616G190) (1993)

FST-145 (130-786G190) (1990)

FST-15 (134R616G190) (1994)

(135R616G190) (1995)

FST-16 (136R616G190) (1996)

(13AR616G190) (1997)

(13AD616G190) (1998)

L-10 (130-425E190) (1990)

L-11 (138-346-190)  (1988)

(139-347-190)  (1989)

L-12 (131-455F190) (1991)

(132-455F190) (1992)

(133H471F190) (1993)

(135C471F190), (135H471F190) (1995)

(136C471F190) (1996)

L-8 (130-317D190)  (1990)

(131-317D190)  (1991)

LT-11 (137-336-190)  (1987)

LT-112 (135-688-190) (1985)

(136-688-190) (1986)

LT-12 (130-656F190) (1990)

(131-656F190) (1991)

L-13 (13A5472F190) (1997)

(13AA472F190), (13AA673F190) (1998)

(13AA672F190) (1999)

LT-1300 (13AA683F190) (2000)

LT-14 (13BP673F190) (1999)

LT-1500 (13AP683G190) (2000)

LT-13 (13AA662F190) (2002)

LT-15 (13AM683F190) (2001)

Compatible with MTD Models:

Hechinger Lawn Tractor

06-223572 (130-650-372) (1990)

06-338917 (133O673G372) (1993)

06-339097 (133P678H372) (1993)

06-351449 (138-648-372) (1988)

06-388664 (138-658-372) (1988)

06-425953 (130-643F372) (1990)

06-445183 (131-645-372) (1991)

06-449631 (131-660G372) (1991)

06-992986 (132-669G372) (1992)

06-474795 (136L660F372) (1996)

06-474878 (136M675G372) (1996)

Ranch King Lawn Tractor

072579 (132 669G209) (1992)

072587 (132 669G210) (1992)

136L660G205 (1996)

13AF678G205 (2002)

13AM660F205 (2002)

MasterCut Lawn Tractor

1050 (138 322 002) (1988)

1060 (139 342 002) (1989)

1105 (138 631 002) (1988)

1105 (138 631A002) (1988)

1105 (139 631 303) (1989)

136L670G301 (1996) (Scotty's)

Compatible with Yard Machines Models:

136H660F000, 136L660F000 (1996)

136L660F700, 136L670F000 (1996)

13A4662F129, 13AF660G352 (2002)

13AF673G000, 13AF675G062 (2002)

13AH660F000, 13AH660F352 (2002)

13AL670G000, 13AM660F062 (2002)

13AM675G000, 13AM675G120 (2002)

Grass Handler Lawn Tractor

1052 (1986) (J.C. Penney)

1057 (850 0308) (1987) (J.C. Penney)

1058D (850 0274) (1991) (J.C. Penney)

Turf Pro Lawn Tractor

1200 (131 650F196) (1991) (Helig Meyers)

136E660F009 (1996) (Hardware Wholesalers)

136E660F709 (1996) (Hardware Wholesalers)

Turf Power Lawn Tractor

136E670G145 (1996) (Stambaugh Thompson)

136G679H145 (1996) (Stambaugh Thompson)

Lawn Tractors

083 782 (130 652F027) (1990)

1050 (UP537) Lawn Champ (1989)

115 311 (138 652 027) (1988)

124011 (136O660G013) Select Series (1996)

13AD678G034 Ryobi (2002)

13AD678G300 MTD Gold (2002)

13AH662F098 Wizard (2002)

13AL673G098 Wizard (2002)

13AL675G022 Lawn Chief (2002)

13AN678G016 Statesman (2002)

Compatible with Ryobi Models:

115-698-065 (1985), 127-560-009 (1987)

130-310D000, 130-311D000, 130-312D000

130-312D033 (73527), 130-313D000, 130-314D000

130-315D000, 130-316D000, 130-317D000

130-317D190, 130-318D000, 130-319D000

130-320D000, 130-321D000, 130-322D000

130-323D000, 130-324D000, 130-325D000

130-326D000, 130-327D000, 130-328D000

130-329D000, 130-330D000, 130-331D000

130-332D000, 130-333D000, 130-334D000

130-335D000, 130-336D000, 130-337D000

130-338D000, 130-339D000, 130-340D000

130-341D000, 130-342D000, 130-343D000

130-344D000, 130-345D000, 130-346D000

130-347D000, 130-348D000, 130-349D000

130-350D000, 130-351D000, 130-352D000

130-353D000, 130-354D000 (1990)

Order Includes:

1x Deck Flat Idler Pulley: Snapper: 7075707YP, 7075707, 27717 ,

72613 , 75707 , 7072942YP, 7027717 , 7072613 , 27717,

MTD: 756-0643A, 756-0437, 756-0437P, 756-0643, 956-0437, 96297

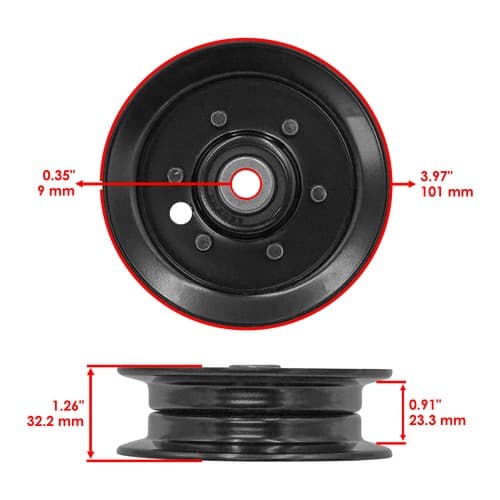

Outer Diameter: 101 mm - 3.97 in

Inner Diameter: 9 mm - 0.35 in

Pulley Flat Width: 23.3 mm - 0.91 in

Height: 32.2 mm - 1.26 in
