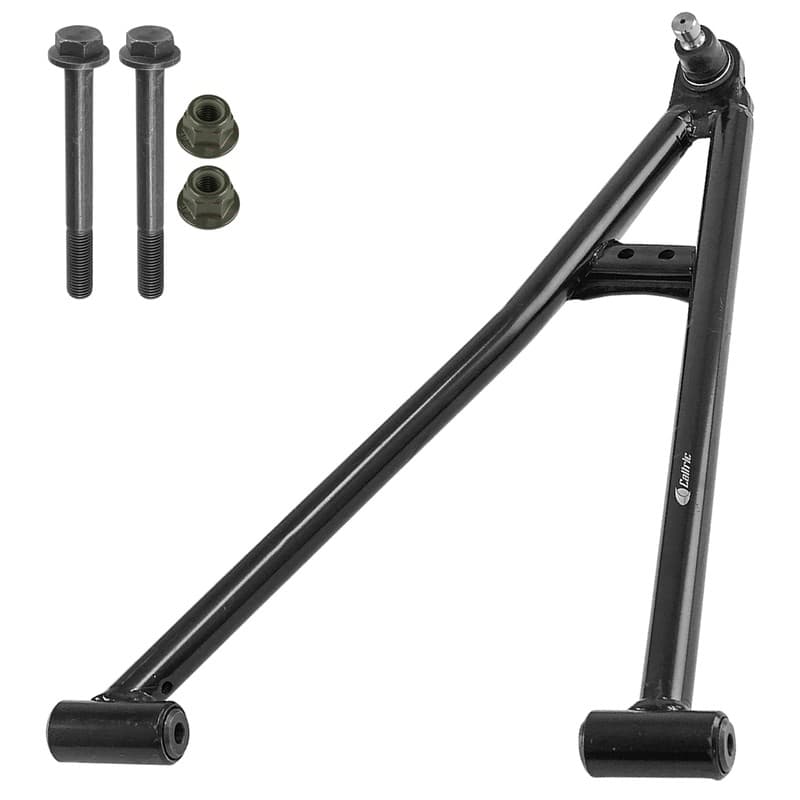

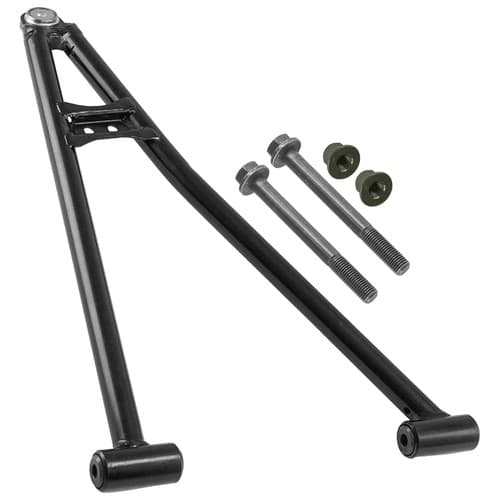

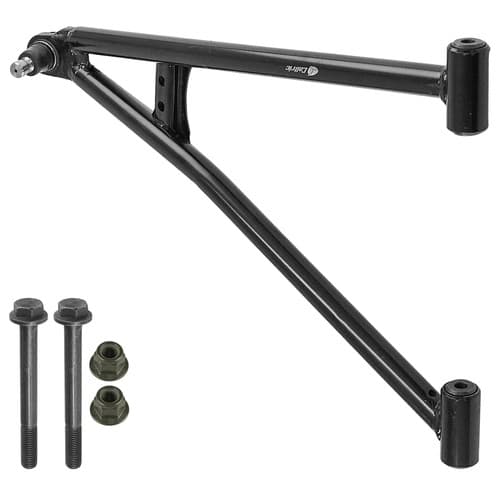

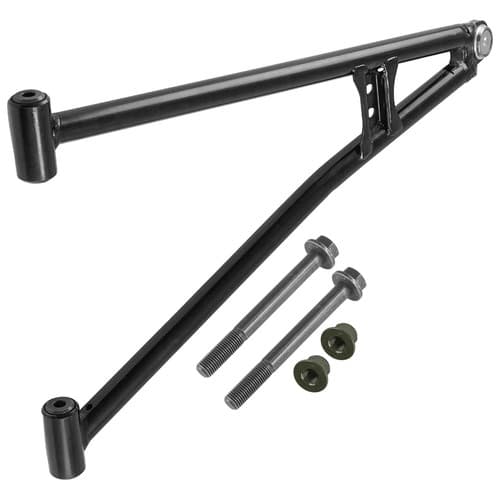

Front Control Arm & Bushing Kit For Polaris General 1000 16-2023/ 4 1000 17-2022

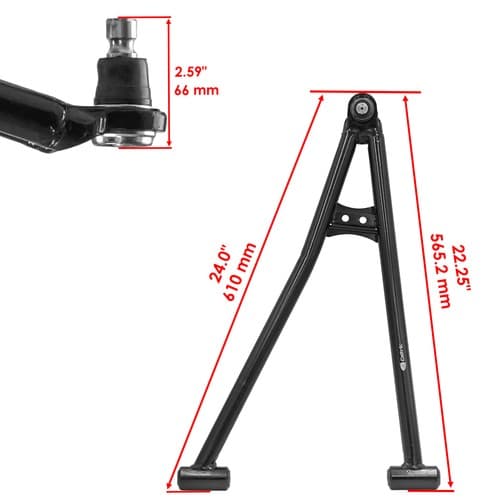

Length: 565.2 mm - 22.25 in
Height: 610mm - 24 in
Width: 66 mm - 2.59 in
Material: Hot Rolled Steel Seamless Tubing

2 x Pivot Shaft: 5139966

Length: 51mm - 2 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 16mm - 0․62 in
Material: Steel

4 x Bushing: 5452233

Width: 15․5mm - 0․61 in
Inner Diameter: 16․5mm - 0․64 in
Outer Diameter: 26mm - 1․02 in
Material: Plastic

2 x Flange Washer: 7556153

Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal

4 x Sealed Pivot Cap:  1543611, 5139968

Width : 10.1mm - 0.39 in
Inner Diameter : 10.4mm - 0.41 in
Outer Diameter : 26.4mm - 1.04 in
Material: Metal

2 x Bolt: 7519043, 7518560

Length: 104mm - 4․09 in
Head Diameter: 15mm - 0․59 in
Threads Size: M10-1․25
Material: Iron

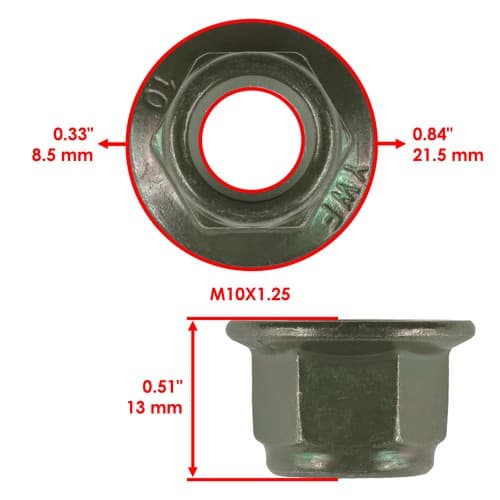

2 x Nut: 7547333

Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron
