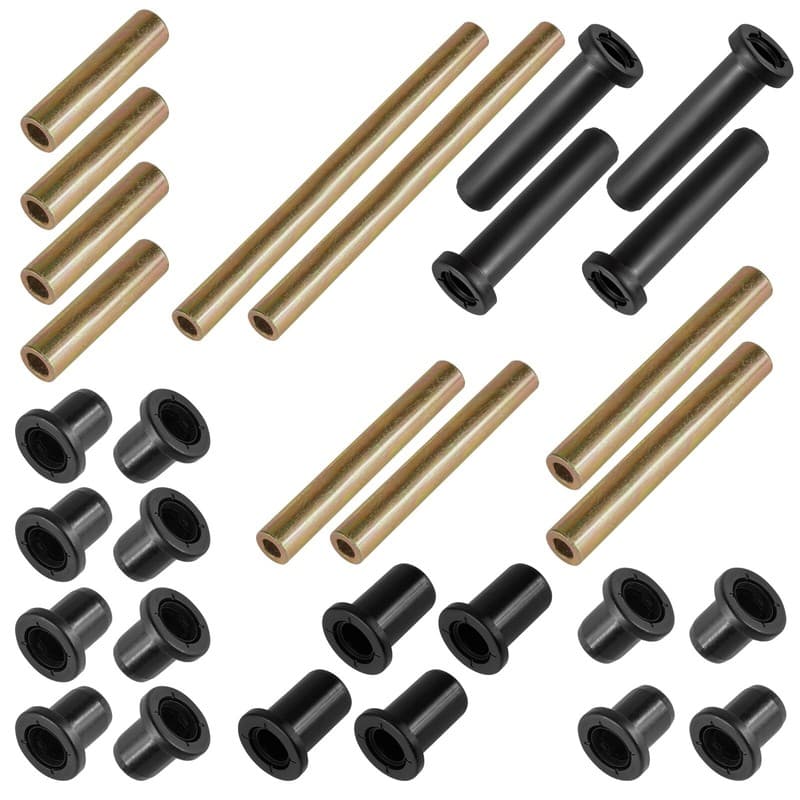

Rear Complete Control Arm Bushing Kit for Polaris Scrambler XP 1000 2014-2022

For Polaris Models:
Scrambler XP 1000 EPS 2014-2022

Order Includes :
4 x Lower Inner Pivot Shaft  |  5137346
12 x Lower Inner Bushing  |   5439874  5436832  5436505
2 x Lower Outer Pivot Shaft   |  5136473
4 x Lower Outer Bushing  |  5437651
2 x Upper Inner Pivot Shaft  |  5137594 5136468
2 x Upper Outer Pivot Shaft  |  5137590 5135501
4 x Upper Inner Bushing  |  5436973 5431596 5433066 5434551 5436220

Dimensions & Measurements :

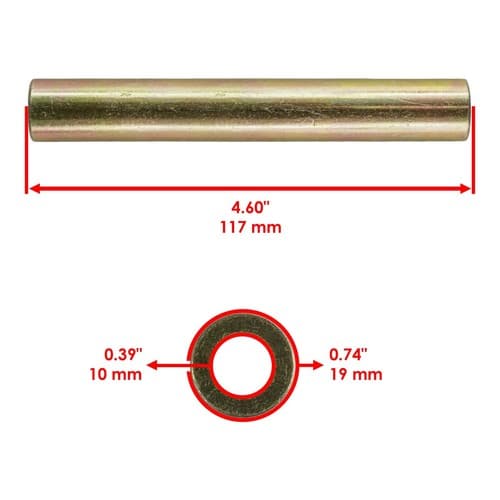

Lower Outer Pivot Shaft
Length : 117mm  |  4.60"
Inner Diameter : 10mm  |  0.39"
Outer Diameter : 19mm  |  0.74"

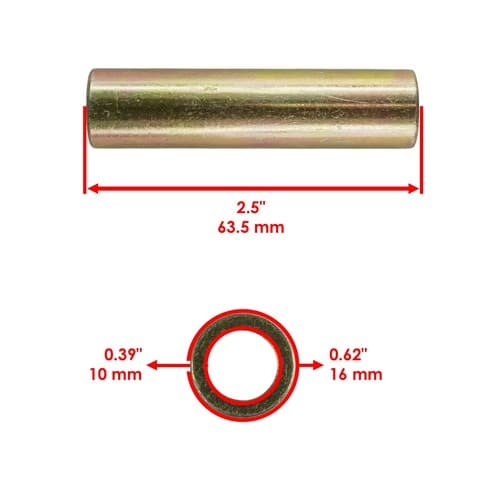

Lower Inner Pivot Shaft
Length : 63.5mm  |  2.5"
Inner Diameter : 10mm  |  0.39"
Outer Diameter : 16mm  |  0.62"

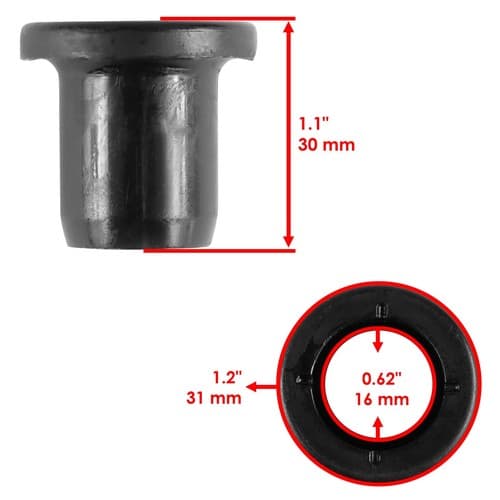

Lower Inner Bushing
Height : 30mm  |  1.1"
Inner Diameter : 16mm  |  0.62"
Outer Diameter : 31mm  |  1.2"

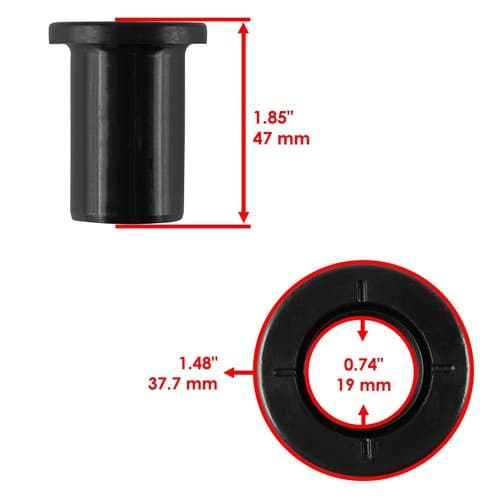

Lower Outer Bushing
Height : 47mm   |  1.85"
Inner Diameter : 19mm  |  0.74"
Outer Diameter : 37.7mm  |  1.48"

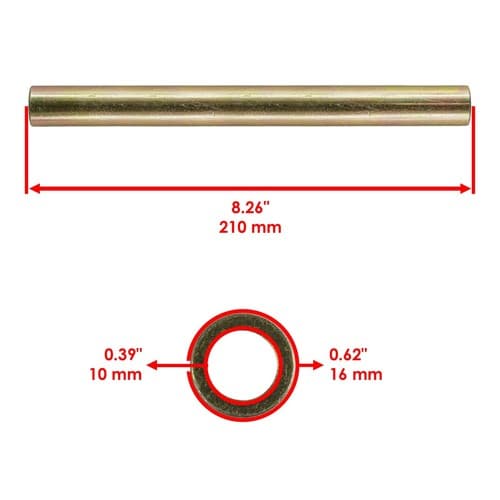

Upper Inner Pivot Shaft
Inner Diameter : 10mm  |  0.39"
Outer Diameter : 16mm  |  0.62"
Length : 210mm  |  8.26"

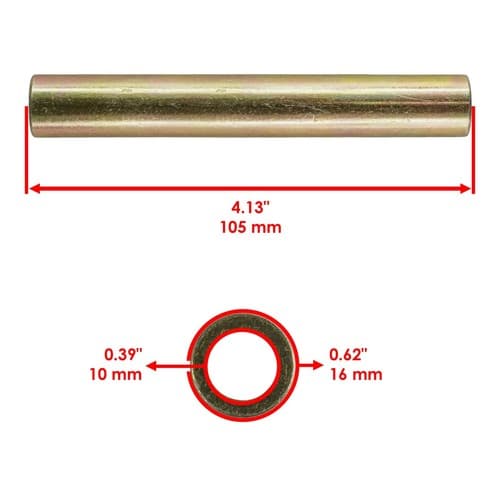

Upper Outer Pivot Shaft
Inner Diameter : 10mm  |  0.39"
Outer Diameter : 16mm  |  0.62"
Length : 105mm  |  4.13"

Upper Inner Bushing
Height : 102mm  |  4.0"
Length : 21mm  |  0.82"

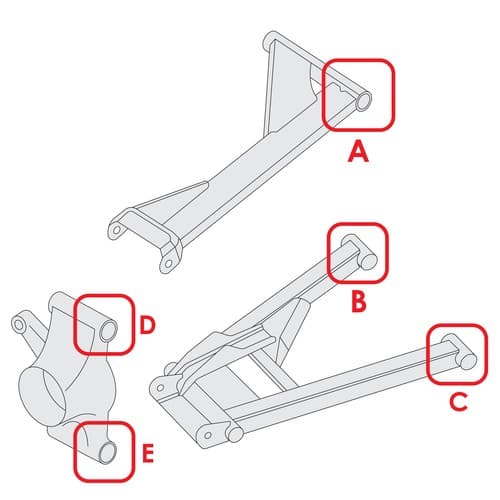

Note: Installs On Location (A) (B) (C) (E) (D) In Second Picture
Control Arm Part Number:
Rear Upper Left 1017216-293 1025619-293 1017216-630 1017216-385 1025619-385 1017216-067 1025619-067 1017216-458
Rear Upper Right 1017217-293 1025620-293 1017217-630 1017217-385 1025620-385 1017217-067 1025620-067 1017217-458 1025620-458
Rear Lower Left 1019410-293 1019410-630 1019410-385 1019410-067 1019410-458
Rear Lower Right 1019411-293 1019411-630 1019411-385 1019411-067 1019411-458

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
