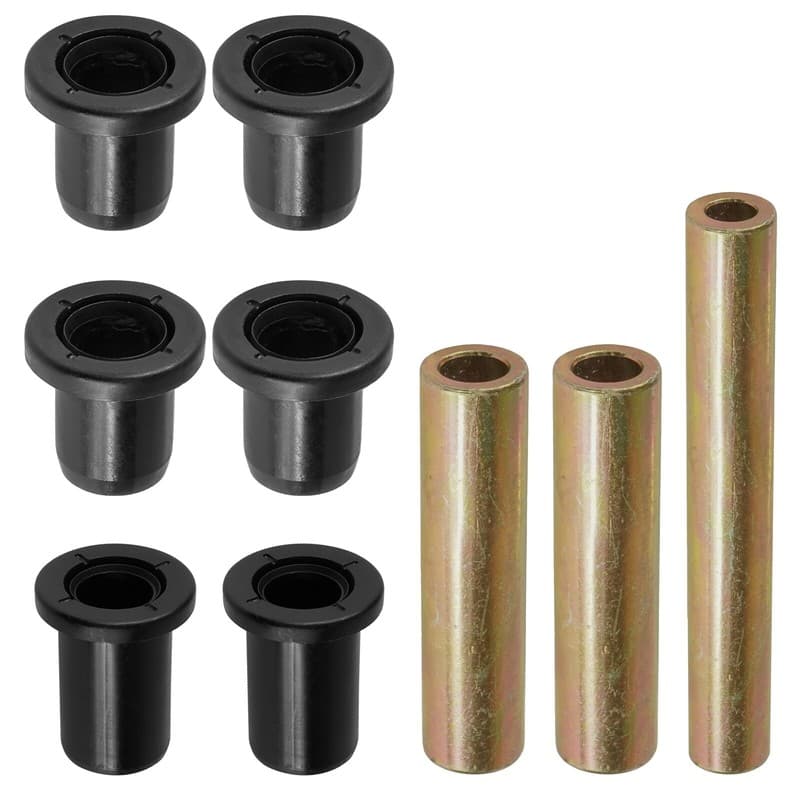

Rear Lower Control Arm Bushing Kit for Polaris Sportsman XP 1000 2015-2021

Fits Following Polaris Models:
Sportsman XP 1000 2015-2021
Sportsman XP 1000 Touring 2015-2021
Sportsman XP 1000 High Lifter Edition 2016-2021
Sportsman XP 1000 Hunter Edition 2020-2021

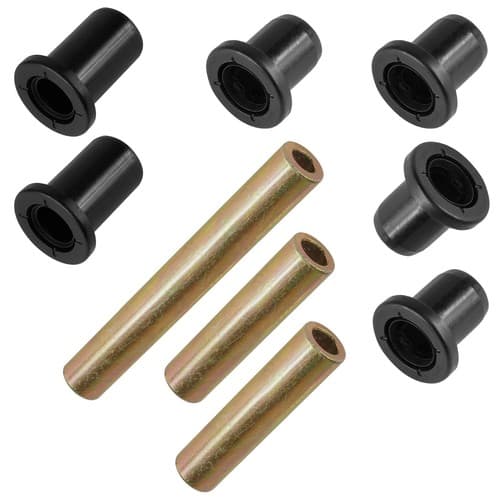

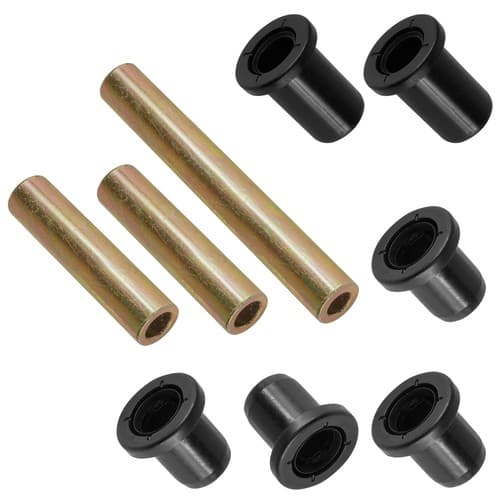

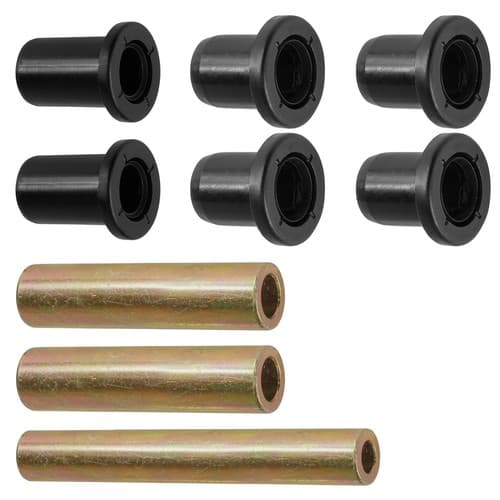

Order Includes:
1 x Lower Outer Pivot Shaft   |  5136473
2 x Lower Outer Bushing  |  5437651
2 x Lower Inner Pivot Shaft  |  5137346
4 x Lower Inner Bushing  |   5439874  5436832  5436505

Dimensions & Measurements :

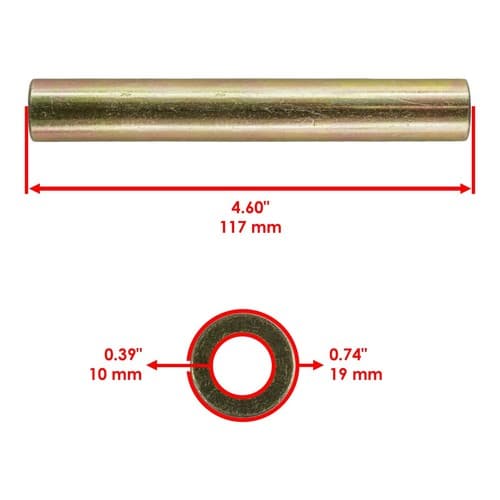

Lower Outer Pivot Shaft
Length : 117mm  |  4.60"
Inner Diameter : 10mm  |  0.39"
Outer Diameter : 19mm  |  0.74"

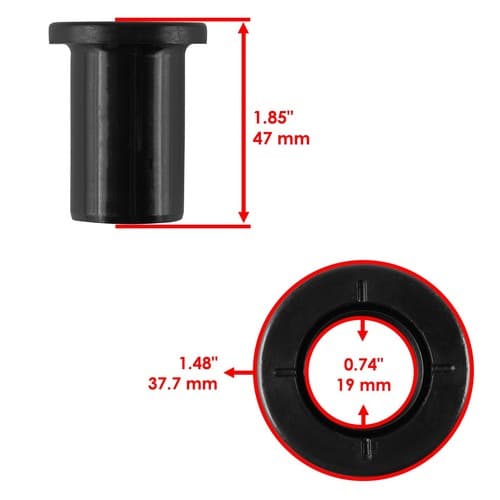

Lower Outer Bushing
Height : 47mm   |  1.85"
Inner Diameter : 19mm  |  0.74"
Outer Diameter : 37.7mm  |  1.48"

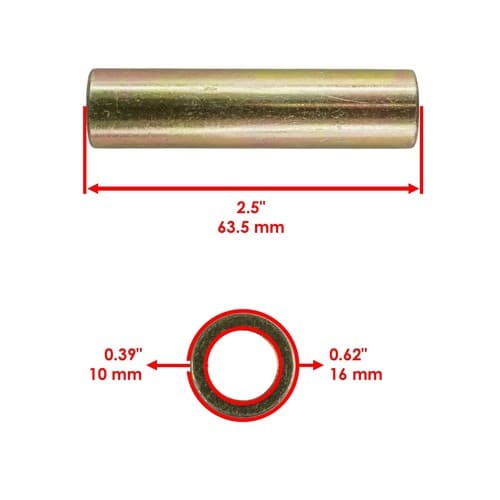

Lower Inner Pivot Shaft
Length : 63.5mm  |  2.5"
Inner Diameter : 10mm  |  0.39"
Outer Diameter : 16mm  |  0.62"

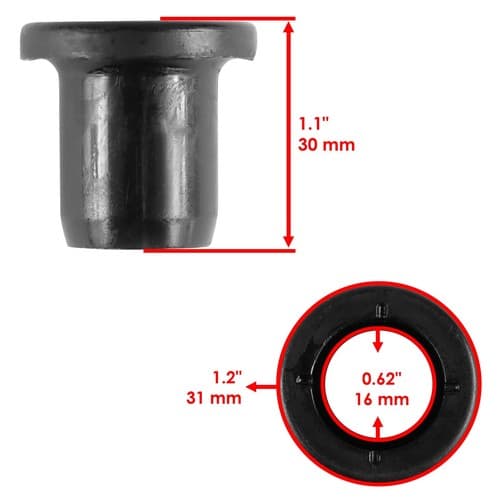

Lower Inner Bushing
Height : 30mm  |  1.1"
Inner Diameter : 16mm  |  0.62"
Outer Diameter : 31mm  |  1.2"

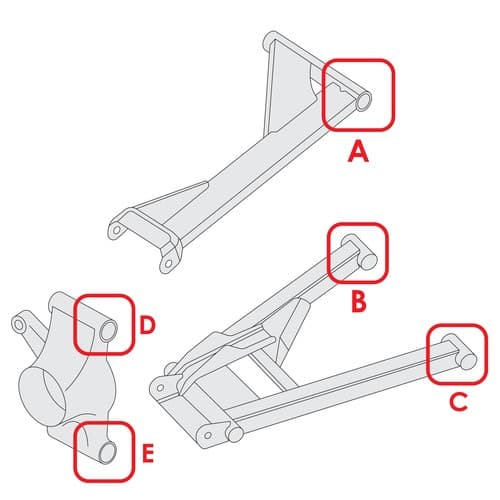

Note: Installs On Location (E) (B) (C) In Second Picture
Control Arm Part Number:
Rear Lower Left  1019410-067 1019410-632 1019410-619 1022011-067 1022011-293 1022011-385 1022011-750
Rear Lower Right  1019411-067 1019411-632 1019411-619 1022012-067 1022012-293 1022012-385 1022012-750

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
